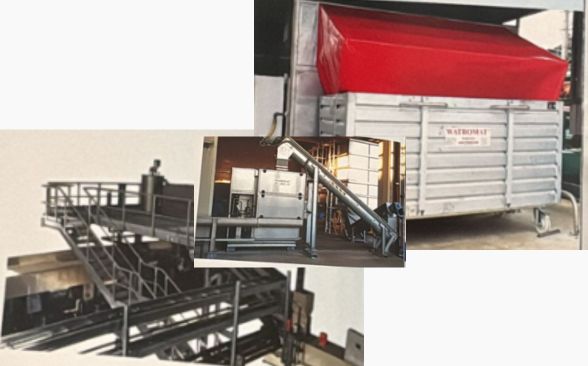

Sludge Dryer

Drying Sludge, Saving Resources

WATROPUR, headquartered in switzerland and founded in 1992, specializes in the design, manufacturing, and maintenance of dryers for sludge treatment in industrial and municipal wastewater facilities. With manufacturing tacilities in Switzerland, Croatia, China, and Hungary, WATROPUR operates across four production sites totalling over 33,500 square meters. The company boasts 17 subsidiaries and approximately 50 sales representatives worldwide, ensuring exceptional service and reliable solutions for wastewater treatment plants globally.

Press Dryer

• Purpose: Designed for sludge with low initial dryness (around 2% dried solids).
• Process: Uses a screw press to dewater the sludge before it enters the drying system.
• Output: Produces highly dried sludge (up to 90% dried solids).
• Components:Includes a screw press, platform, belt dryer, conveyor, polymer unit, pump, flow meter, mixing tank, and control cabinet.

Bunker Dryer

• Purpose: Suited for sludge that is already somewhat dry (minimum 20% dried solids).
• Process:The sludge is stored in a bunker before being processed through a conveyor and then dried.
• Output:Also achieves a high level of dryness (up to 90% dried solids)
• Components:Consists of a bunker, conveyor, belt dryer, and control cabinet.

Skip Dryer

• Purpose:Designed for filter cake sludge that has a higher initial dryness (around 30% dried solids).
• Process:The sludge is directly dried in a container and requires less initial processing.
• Output:Produces dry sludge (up to 90% dried solids).
• Components:Includes a dryer with a control cabinet, air duct, drying container, and tilting system.
